Case for iMX6 Sabre Lite / BD-SL-i.MX6

This plastic case will help to protect your BD-SL-i.MX6 board whilst still allowing access to the majority of connectors. There is a hole provided to allow the LVDS panel and I2C lead to be connected.

The case is supplied with a self-adhesive heat sink to prevent the board from overheating. Please note that the board in the pictures is not supplied.

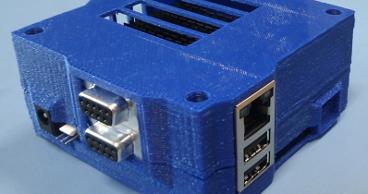

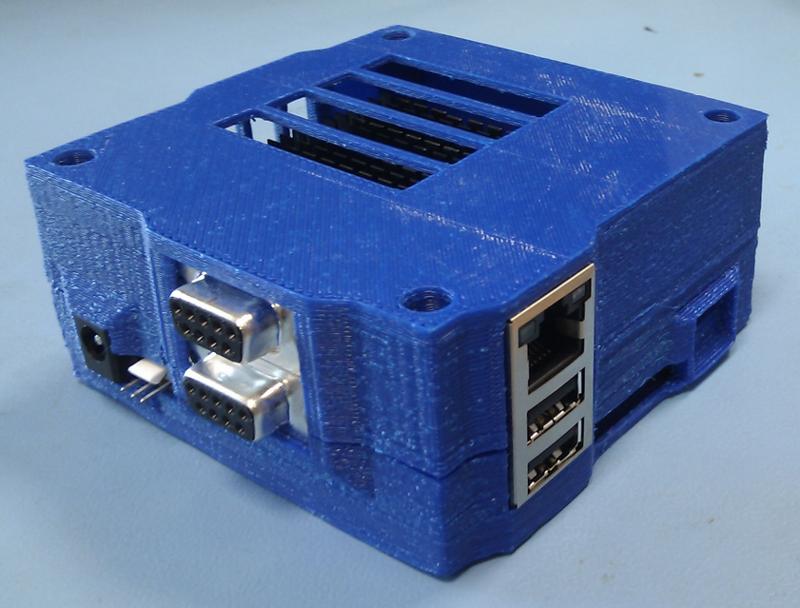

Available in Black, Red, Pink, White and Blue. Due to the nature of 3D printing, the finish is layered and may be slightly warped. Please also note that the finish of the Blue is slightly rough / pitted.

Order

i.MX6 / iMX6 Sabre Lite Case with board.

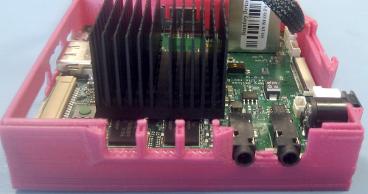

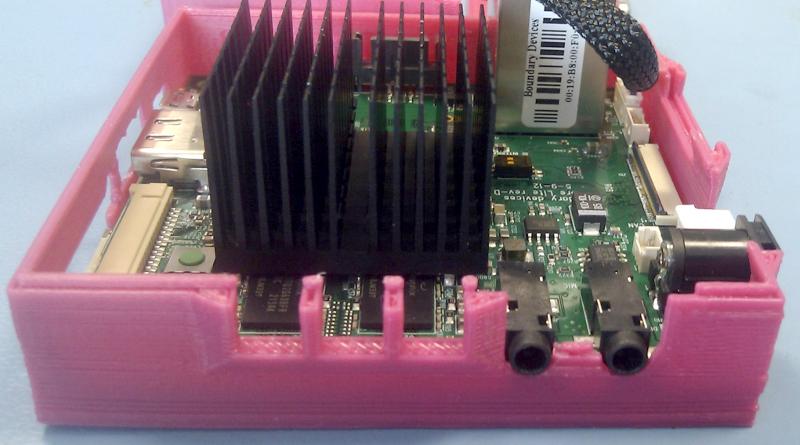

Sabre Lite with heatsink.

Keep Cool

I have noticed that the Sabre Lite is prone to overheating, so when ordering a case I also supply a self-adhesive heat sink to keep it cool. The case is designed to draw in air over the heatsink and out of the top.

Order

LCD Mount

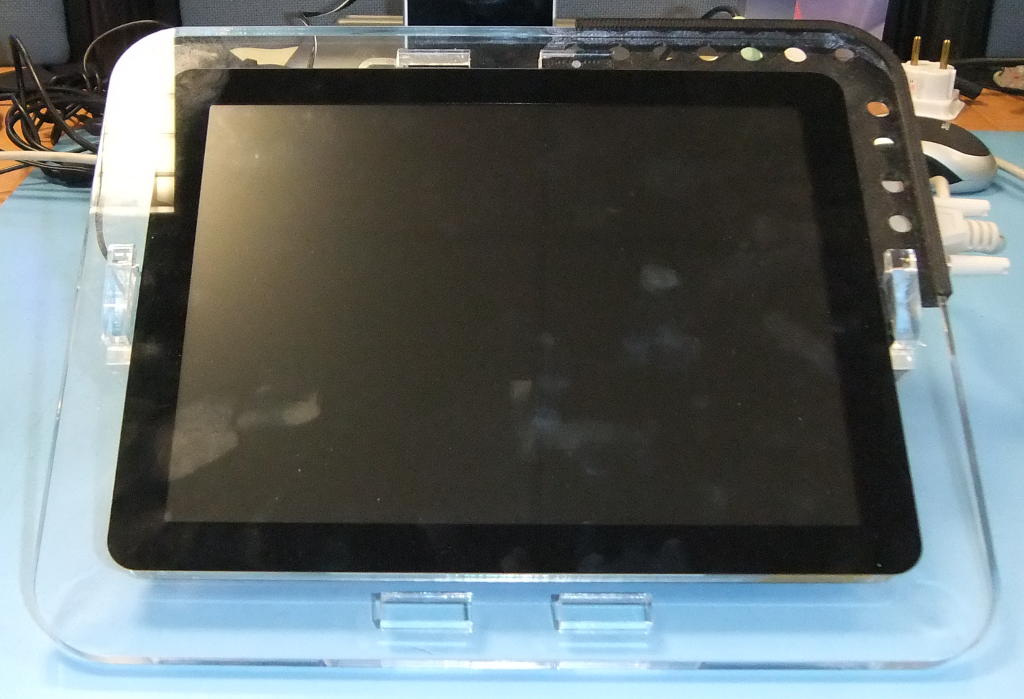

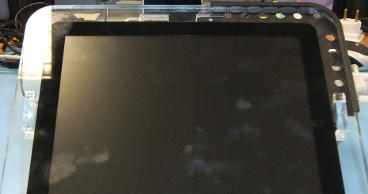

I have created an LCD mount to work with the MCIMX-LVDS1 panel sold by CPC / Farnell. This helps to keep the LVDS cable from damage by holding the board on the back of the LCD.

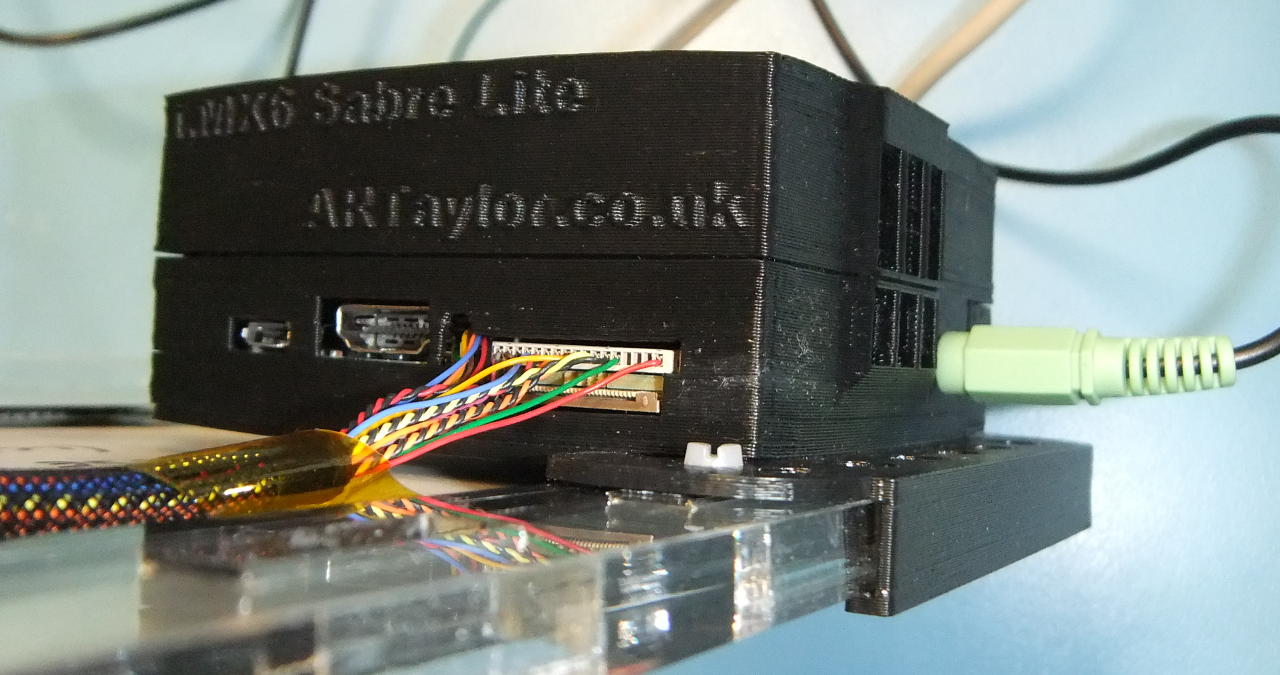

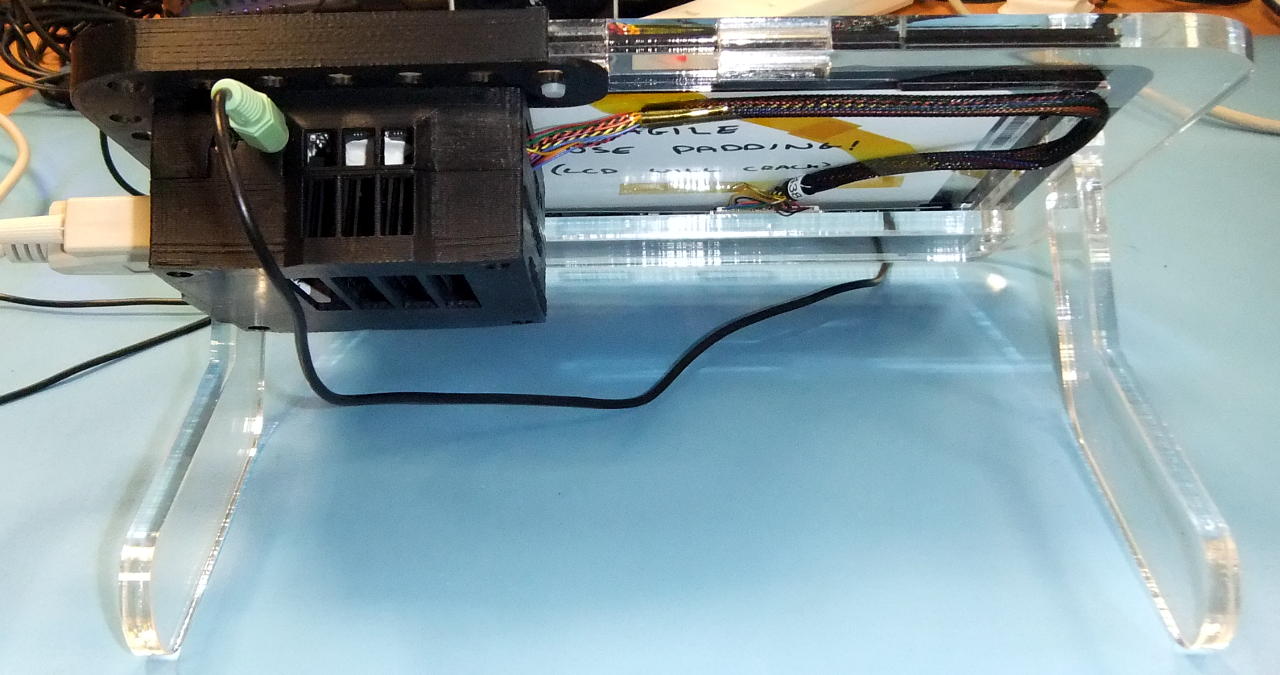

Case mounted on an LCD panel.
Case mounted on an LCD panel.
Case mounted on an LCD panel.

Order a Case for the Sabre Lite

Please View In Store
